Vector Layer

Vector layer is the most versatile layer in Pixelyz. You can create and modify vector as you like.



To create a vector layer open the menu bar by pressing space and click on the vector button.


Vector button

You can create a vector layer when no layer is selected and you hold A to make the pie menu appear. Move up to select vector and release the A on your keyboard.


How do you draw a vector ?

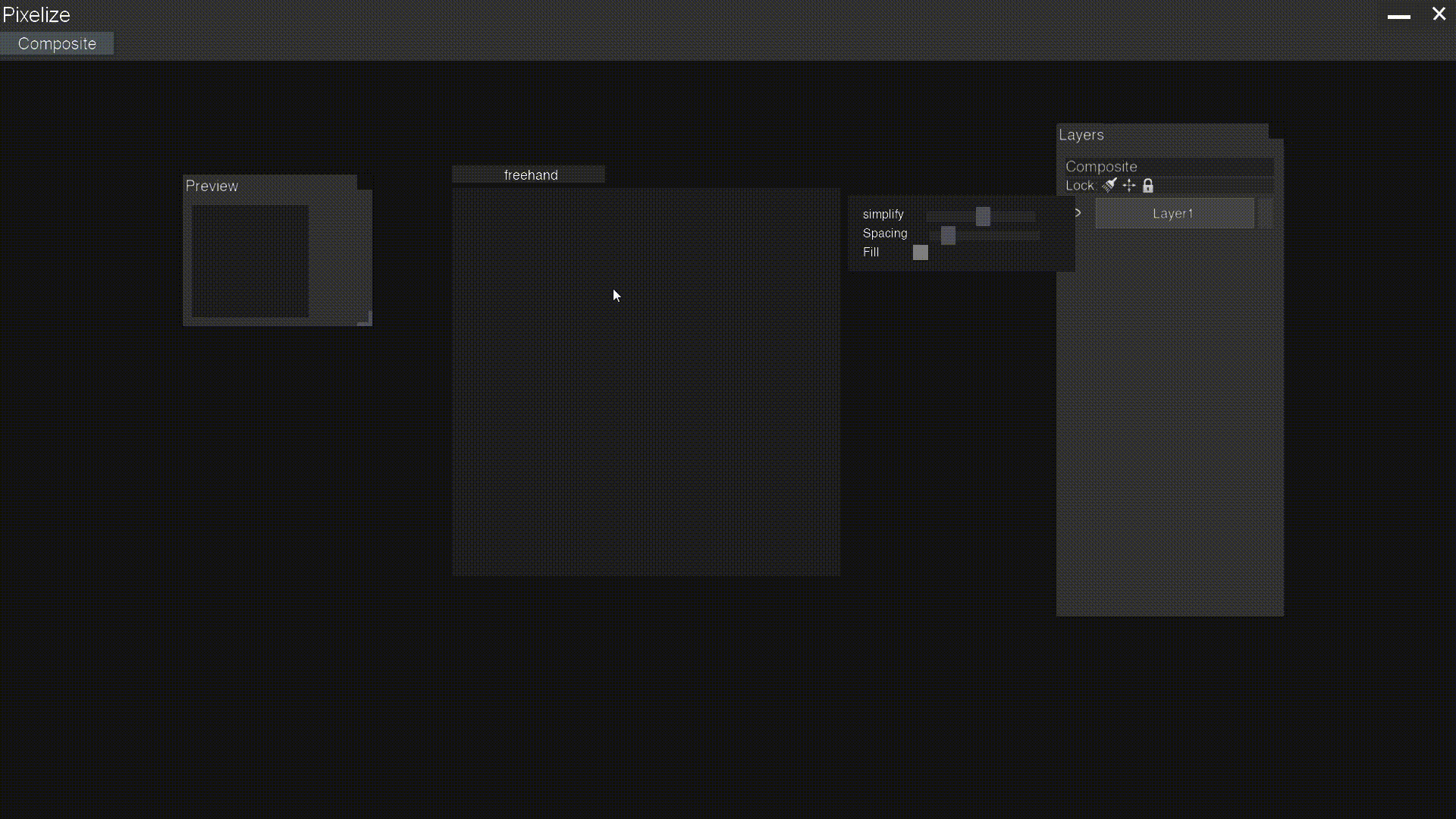

After you create a new vector layer or if you clear a vector you'll be prompt to the vector drawing state.

Vector drawing has only two modes, Freehand and Polygon. You can swap between the two by pressing tab or using the drop down button on the left top corner

Screenshot 2021-08-22 at 14.51.18.png

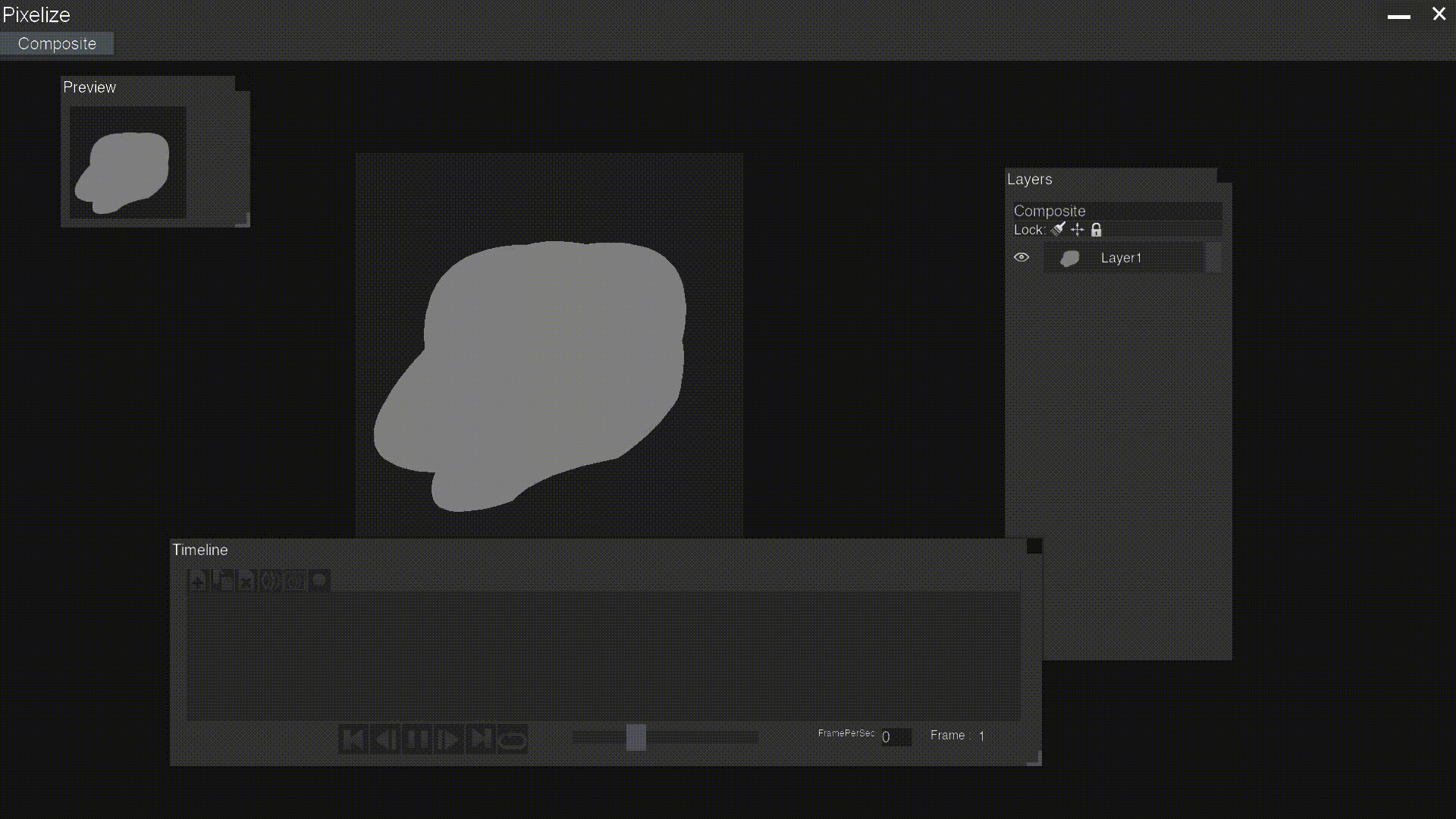

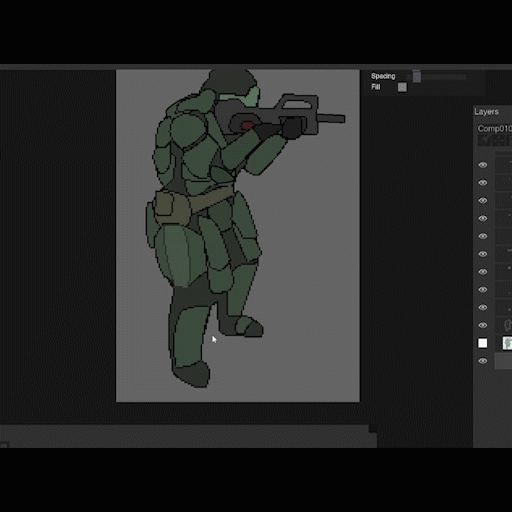

Freehand

Create vector with a natural workflow. Sketch a form and let the tool change it into a vector. Use the simplify and spacing slider to draw a shape in a more effective manner. Then redraw the sketch until you are satisfied.

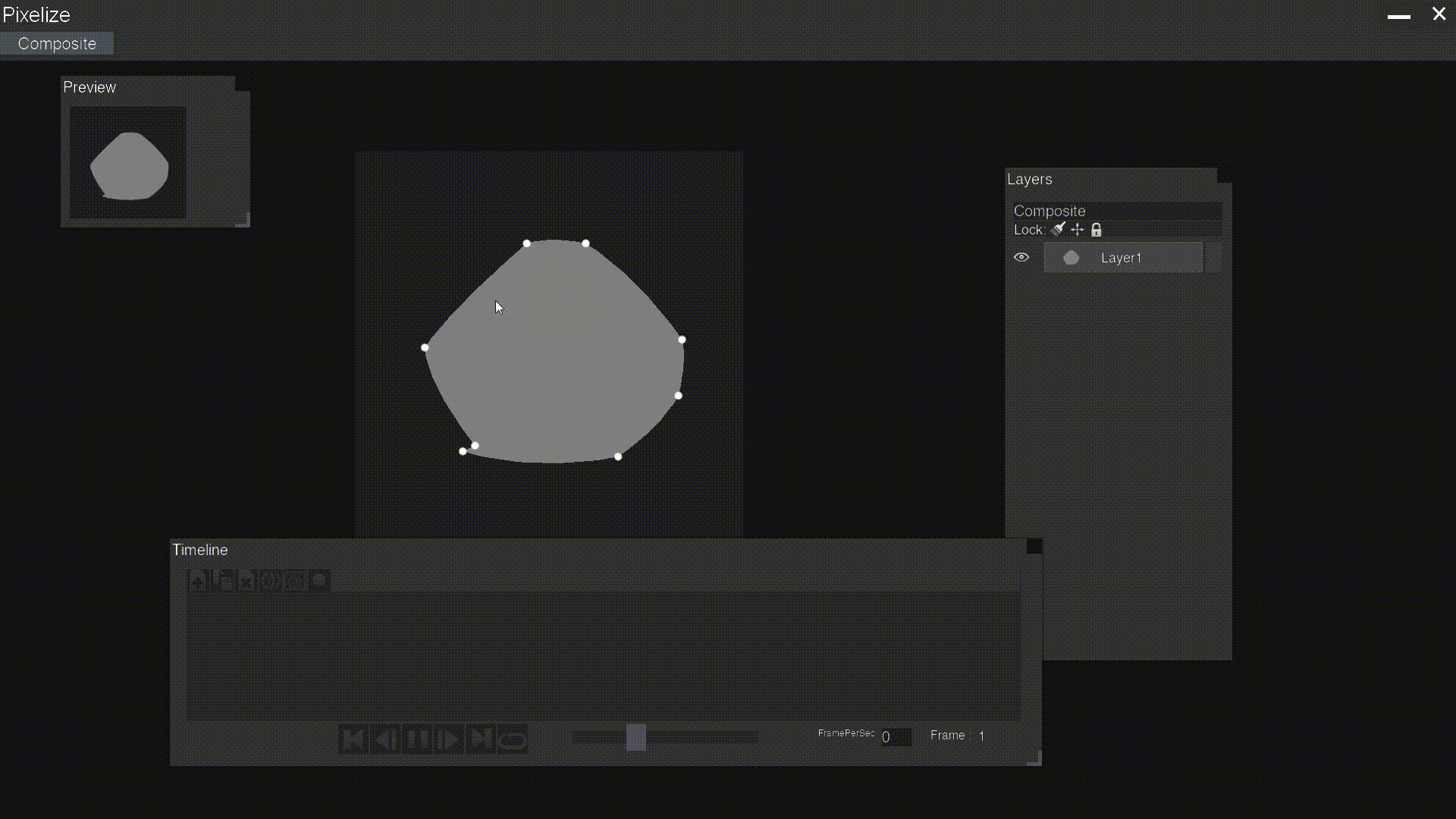

Polygon

Draw vector with a polygon tool.

Draw a rough shape and control your point count. Pick the right tool for the right workflow

Polygon vector.gif

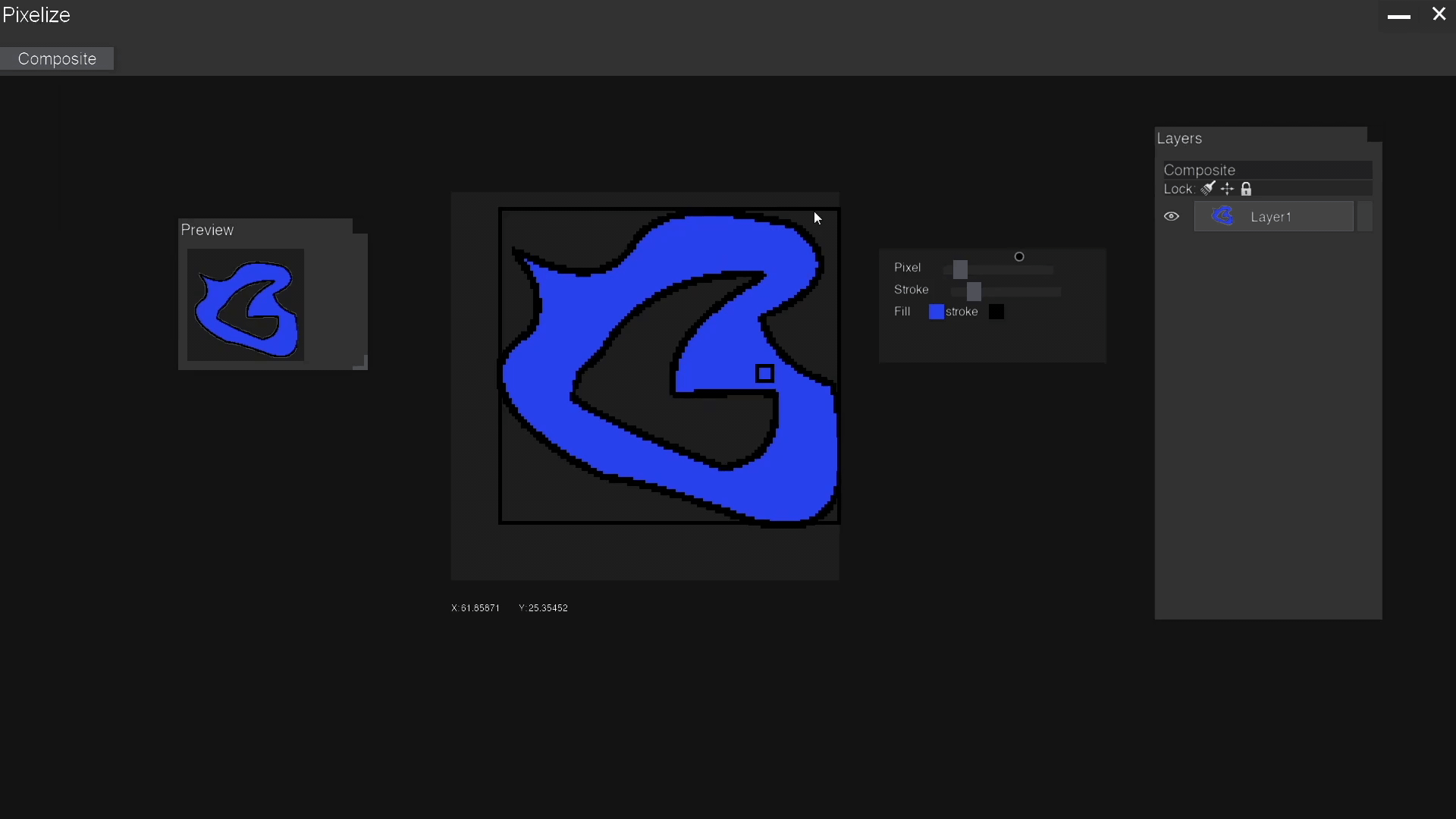

Vector creation panel

The vector panel is a dedicated panel for editing and manipulating the apparence of the layer vector.

Simplify - number of point

Spacing - number of vector point before smoothing

Fill color of vector


How do you edit a vector?

The vector layer has two modes: edit mode and transform mode.

Screenshot 2021-08-14 at 03.10.54.png

Edit mode

Edit mode can be accessed by double clicking left on the transform rectangle.

When on edit mode, the selected layer will show the vector's end points.


Edit mode allows you to change the vector's end points or the curve to edit your drawing.

Select, delete, drag, curve and points. Select multiple points in a natural workflow. Swap between layers with a single click.

Click and drag on the curve to edit it. No need to manage with control points.

Control points can still be displayed by holding shift on the keyboard.


Select multiple points or curve then left click and drag to move the entire group.

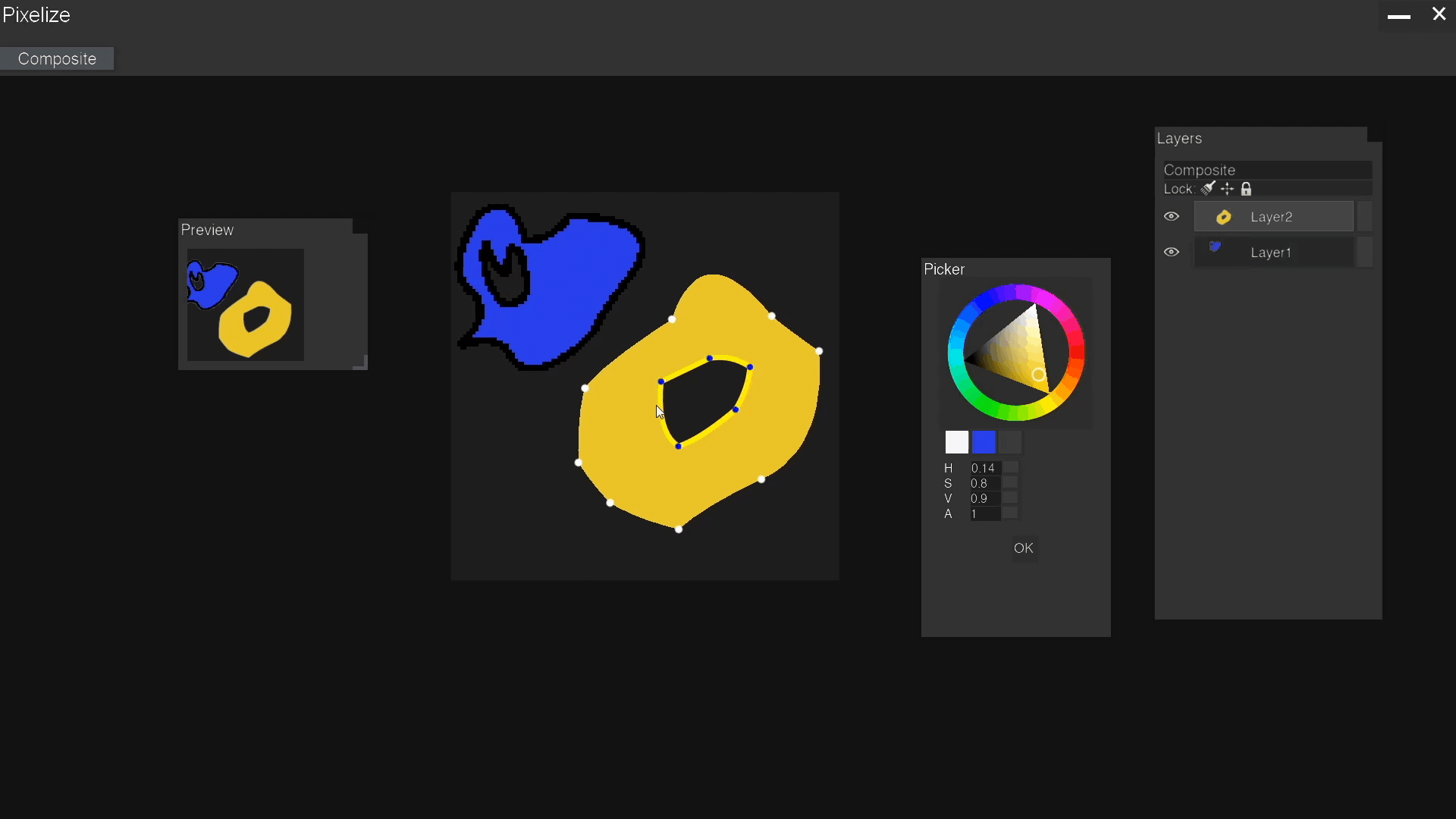

Hold x and draw a free hand shape to cut a hole in the vector.

Hole can be transformed and edited like a regular vector by double clicking on one of its curves.

Cut (1).gif
Screenshot 2021-08-14 at 03.11.08.png

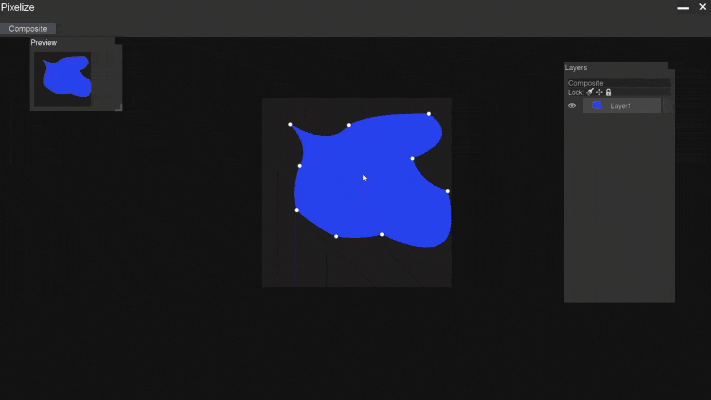

Transform mode

Transform mode can be accessed by double clicking left on the vector, in edit mode.

In transform mode, the selected layer will show the vector's transform rectangle.

In Transform mode you can change the overall scale, rotation and position of all points in the vector layer.

Click on the corner and drag to change size.

Click and drag on the rectangle to move the vector shape.

Click and drag on the widget to rotate the vector shape.

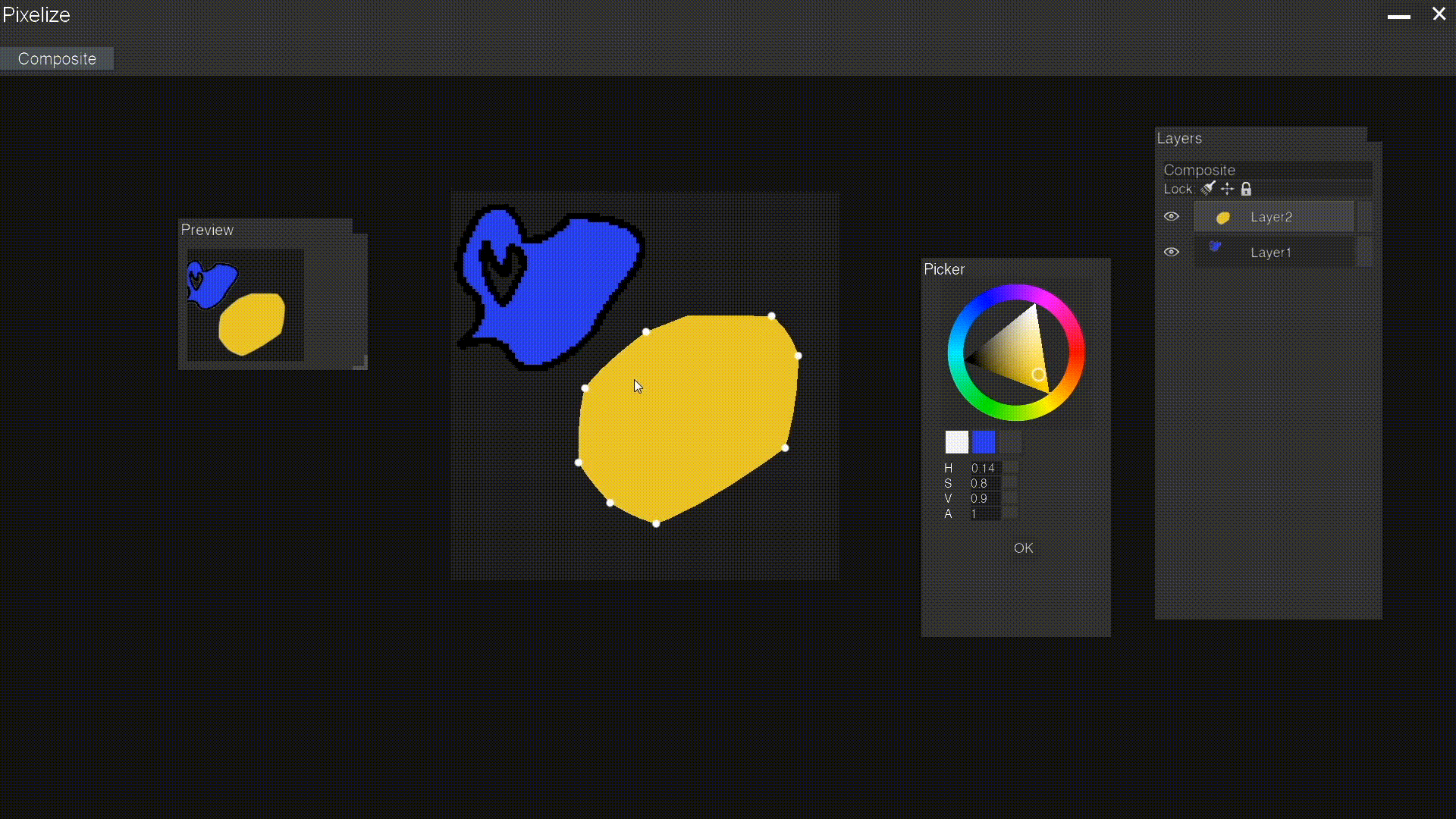

Duplicate

Hold control then left lick and drag to duplicate the vector in a new layer.

Duplicate Orange.gif

Duplicate cut

Drag cut vector while pressing ctrl to duplicate cut inside the same layer.

Keep consistency with your art.


Fill vector

When you have create a vector, you can fill it with 3 types. Color, gradient and noise.

When your layer is selected, hold A to make the pie menu appear. Move to select property and release the A on your keyboard.

You can also open the layer properties panel by double clicking on a layer.


Layer properties open. Choose wich type of fill in Fill Type icon

Color


Size

Layer width

Layer height

Properties

Color - fill color

Alpha - controls opacity

Outline color

Outline size

Gradient

Gradient has two mode. Linear or radial. Choose between one of them by clicking in Type icon.


Size:

Layer width

Layer height

Properties:

Fill type

Type Radial or Linear

Start - Gradient color start point

End - Gradient color end point

Displacement:

Rings - Number of Gradient ring

Distorsion

Distorsion Size

Pattern alpha

Alpha - controls opacity

Noise

Gradient has two mode. Linear or radial. Choose between one of them by clicking in Type icon.


Type of noise


Size:

Layer width

Layer height

Properties:

Fill type

Type of Noise

Color 1 - fill color 1

Color 2 - fill color 2

Amplitude

Alpha - controls opacity

How do you animate a vector

You can only do animation with animation layer. In order to animate a vector layer, you first need to convert it into a animation layer.

With the layer selected hold A and move the mouse on the right toward the animate, then release A.

Screenshot 2021-08-14 at 03.11.59.png
